NFC Tag

NFC is a new short range wireless connectivity techhology that evolved from a combination of existing contactless identification and interconnection techologies. NFC enables intuitive and easy to use consumer devices interactions.
Based on NFC the NFC Forum has created the NFC Date Exchange Format (NDEF) and the NFC Forum Type Tag Operation . NDEF is a data format to encapsulate and identify application data hat is exchanged between NFC enabled devices. Atype of such device is the NFC Forum Type Tag. The Type Tags are contactless cards based on currently available products capable to store NDEF formatted data.
NDEF and the NFC Forum Type tag Operation allow New Kind of touch based applications:

>>Access control
>>Parking meters
>>Movie theater
>>Transit ticketing
>>Bus timetable
>>Tourist spots
>>Payment
>>Guide system
>>Smart Poster
>>School
>>Medicines
>>Electronic business cards
>>Fast data transfers
>>Map information

Such application can be implemented using already available in the market NFC enabled tag products: Mifare Ultralight, Mifare Ultralight C, NXP NTAG203, NXP NTAG210, Mifare DESFire, SmartMX, Innovision Topaz, and Sony FeliCa.

NFC Typ Tags include: Type 1 Tag, Type 2 Tag, Type 3 Tag, Type 4 Tag.

NFC Product:

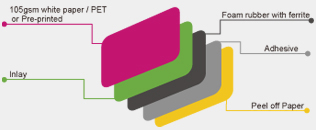

1.NFC Label with ferrite(apply on metal surface)
Description
Surface: Glossy or matte
Color: White or custom artwork
Size:46x31mm,29x29mm,15x35mm or Custom
Thickness: 0.6mm+-0.02mm
Frequency: 13.56MHz
Protocol: ISO14443A
Operating Distance less than 10cm
Operating temperature: -20℃ to +50℃
nfc tag

nfc tag
2. NFC Label without ferrite (don't apply on metal surface)
Description
Surface: Glossy or matte
Color: White or custom artwork
Size: 46x31mm, 29x29mm, 15x35mm or Custom
Thickness: 0.35mm+-0.02mm
Frequency: 13.56MHz
Protocol: ISO14443A
Operating Distance less than 10cm
Operating temperature: -20℃ to +50℃
nfc label without ferrite



3:NFC Card

nfc card

 4:NFC Tag

nfc tag



 5:NFC Key fob

nfc key fob
